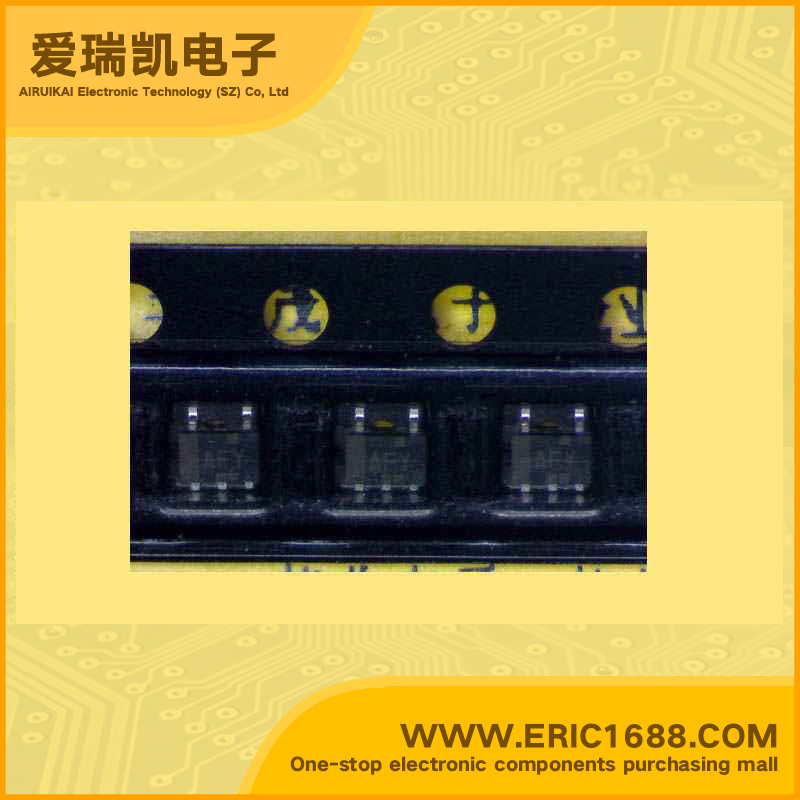

Integrated Circuit（IC） Inverting Schmitt trigger SN74AHC1G14DCKR SOT-353/SC70-5/SC-88A marking AFS
| 逻辑类型 Logic Type | 反相施密特触发器 Inverting Schmitt trigger |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 2v~5.5v |
| 静态电流Iq Current - Quiescent (Max) | 10uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA,8mA |
| 低逻辑电平 Logic Level - Low | 0.1v~0.44v |
| 高逻辑电平 Logic Level - High | 1.9V~3.8V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 7ns @ 5V，50pF |
| Description & Applications | SINGLE SCHMITT-TRIGGER INVERTER GATE ；Operating Range of 2 V to 5.5 V Max tpd of 10 ns at 5 V Low Power Consumption, 10-µA Max ICC ±8-mA Output Drive at 5 V Latch-Up Performance Exceeds 250 mA Per JESD 17 |
| 描述与应用 | 单一的施密特触发器逆变器门;2 V至5.5 V的工作范围 最大5 V时为10 ns吨 低功耗，10μA最大ICC ±8 mA输出驱动在5 V 闭锁性能超过250 mA每 JESD17 |
