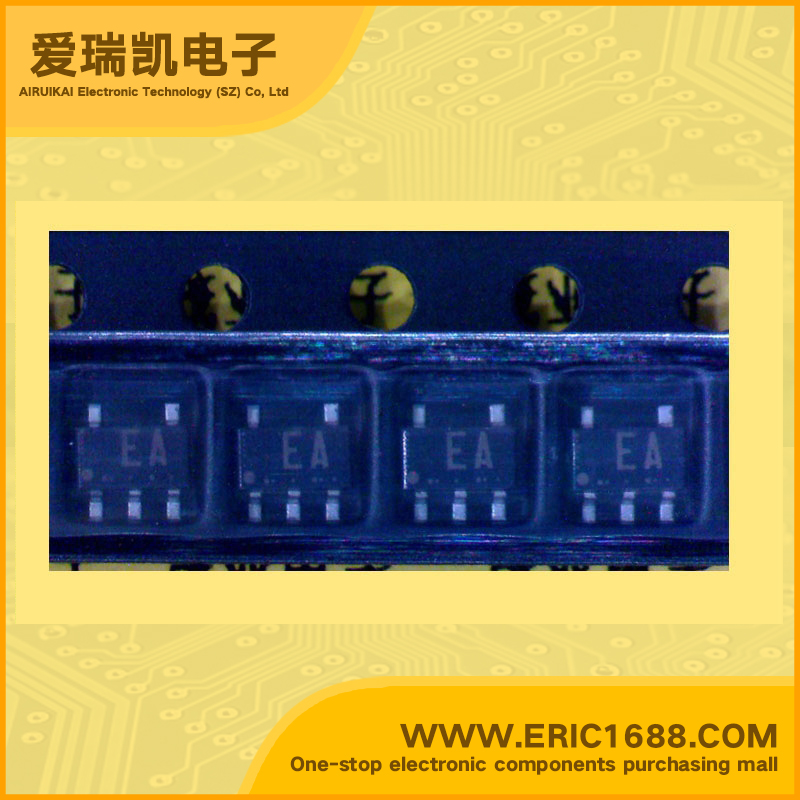

UPA504T NPN+PNP Complex Bipolar Transistor 50V/-50V 100mA/-100mA HEF=90~600 SOT-153/SOT23-5 marking EA switch and digital circuit application

Model：UPA504T
Mark / screen / code / typing：EA
Manufacturer：
Date Code：05+ 05+
Package：SOT-153/SOT23-5
Standard Package：3000
Min Order：10

Hot selling goods

Product description

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)	50V/-50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)	50V/-50V
集电极连续输出电流IC Collector Current(IC)	100mA/-100mA
截止频率fT Transtion Frequency(fT)
直流电流增益hFE DC Current Gain(hFE)	90~600
管压降VCE（sat） Collector-Emitter Saturation Voltage
耗散功率Pc Power Dissipation	300mW
Description & Applications
描述与应用
