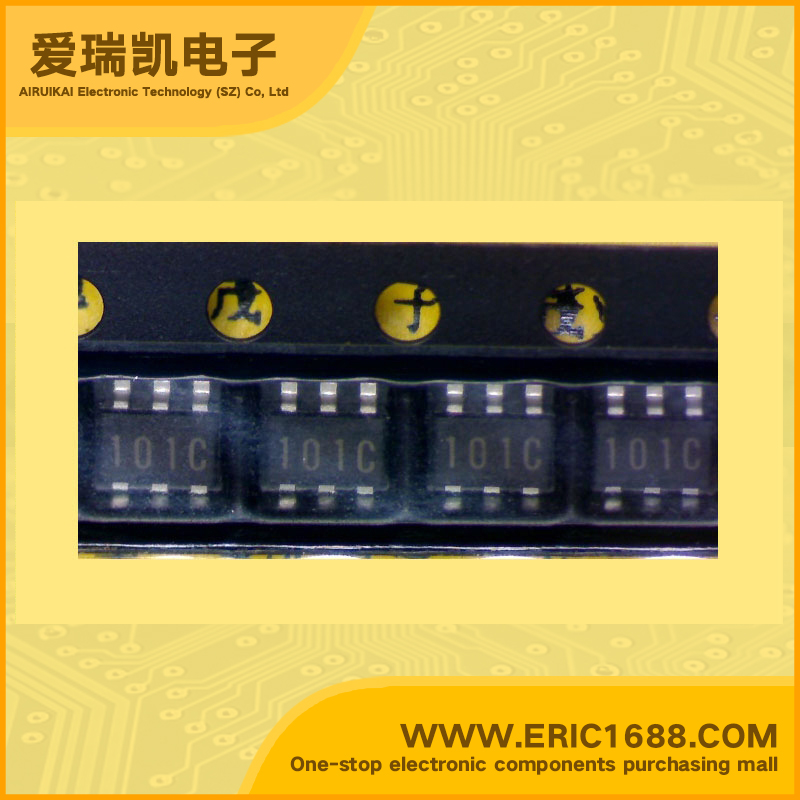

XC6401FF36MR LDO Voltage Regulator 3.6V 100mV/0.1V With Enable Pin SOT-163/SOT-26/SOT23-6 marking 10 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
2
输入电压VIN
Voltage - Input
6.5V
输出电压VOUT
Voltage - Output
3.6V
输出电流Io
Current - Output
100mA/0.1A
最大压降VDO
Voltage - Dropout
100mV/0.1V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
Description & Applications•Dual LDO Regulators, Low ESR Cap. Compatible •Maximum Output Current : More than 150mA (300mA limit) •Dropout Voltage : 100mV @100mA •Operating Voltage Range : 1.5V ~ 6.0V •Output Voltage Range : 0.8V~5.0V (50mV increments) •Highly Accurate : ±2% (VOUT>1.5V) : ±30mV (VOUT≦1.5V) •Low Power Consumption : 25μA (TYP.) •Standby Current : Less than 0.1μA (TYP.) •High Ripple Rejection : 70dB @1kHz •Operating Temperature Range : -40℃ ~ +85℃ •Low ESR Capacitor Compatible : Ceramic capacitor •Low Output Noise
描述与应用•双LDO稳压器,低ESR电容。兼容 •最大输出电流:大于150mA(300毫安限制) •漏失电压:100mV时100mA •工作电压范围:1.5V〜6.0V •输出电压范围:0.8V〜5.0V(50mV增量) •高精度:±2%(VOUT>1.5V),±30mV的(VOUT≦1.5V) •低功耗:25μA(典型值) •待机电流小于0.1μA(典型值) •高纹波抑制:70分贝@1KHZ •工作温度范围:-40℃〜+85℃ •低ESR电容器兼容的陶瓷电容器 •低输出噪声
