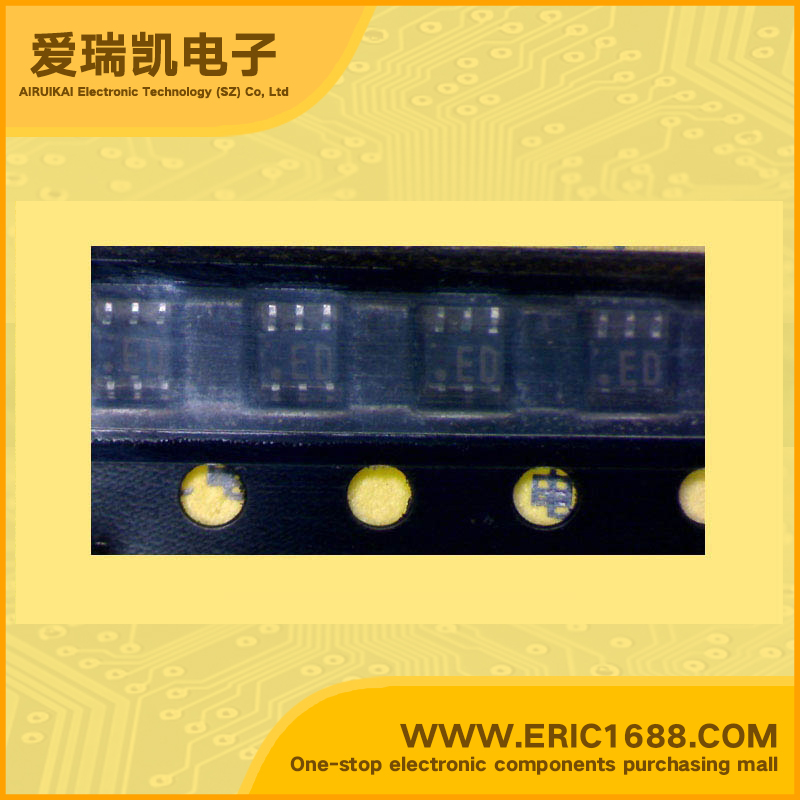

XP4654 NPN+PNP Complex Bipolar Transistor 40V/-15V 100mA/-50mA 60~320/50~150 SOT-363/SC-88 marking ED switch and digital circuit application
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 40V/-15V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 40V/-15V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/-50mA |
| 截止频率fT Transtion Frequency(fT) | 450MHz/1500MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 60~320/50~150 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 170mV/-100mV |
| 耗散功率Pc Power Dissipation | 150mW |
| Description & Applications |
Features • Silicon NPN epitaxial planer transistor (Tr1) Silicon PNP epitaxial planer transistor (Tr2) • Two elements incorporated into one package • Reduction of the mounting area and assembly cost by one half. Applications • For high speed switching 2SC3757 + 2SA1738
|
| 描述与应用 |
特点 •NPN硅外延的刨床晶体管（TR1）硅PNP外延刨床晶体管的（TR2） •两个要素纳入一包装 •减少安装面积和汇编一半的费用。 应用 •用于高速开关 2SC3757 + 2SA1738 |
