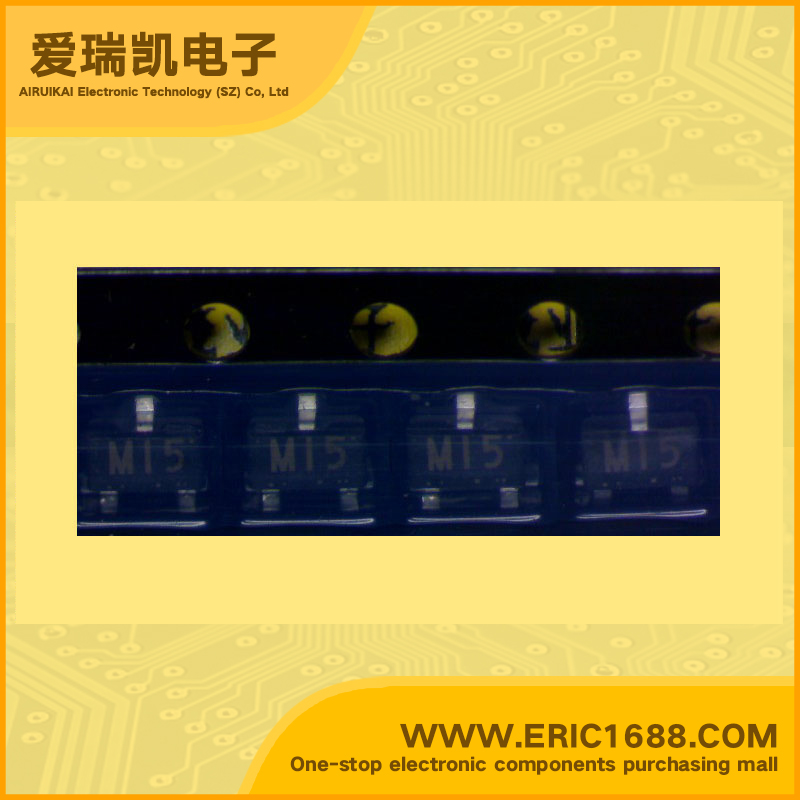

2SA1411 PNP transistors（BJT） -25V -150mA/-0.15A 200MHz 500~1000 -150mV/-0.15V SOT-23/SC-59 marking M15 radio audio frequency amplifier switch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -25V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −25V |
| 集电极连续输出电流IC Collector Current(IC) | −150mA/-0.15A |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 500~1000 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | −150mV/-0.15V |
| 耗散功率Pc PoWer Dissipation | 200mW/0.2W |
| Description & Applications | audio frequency amplifier switching PNP silicon epitaxial transistor very high DC current gain； high Vebo voltage：V=-10v |
| 描述与应用 | 音频功放开关 PNP硅外延晶体管 非常高的直流电流增益; VEBO高电压：V=-10V |
