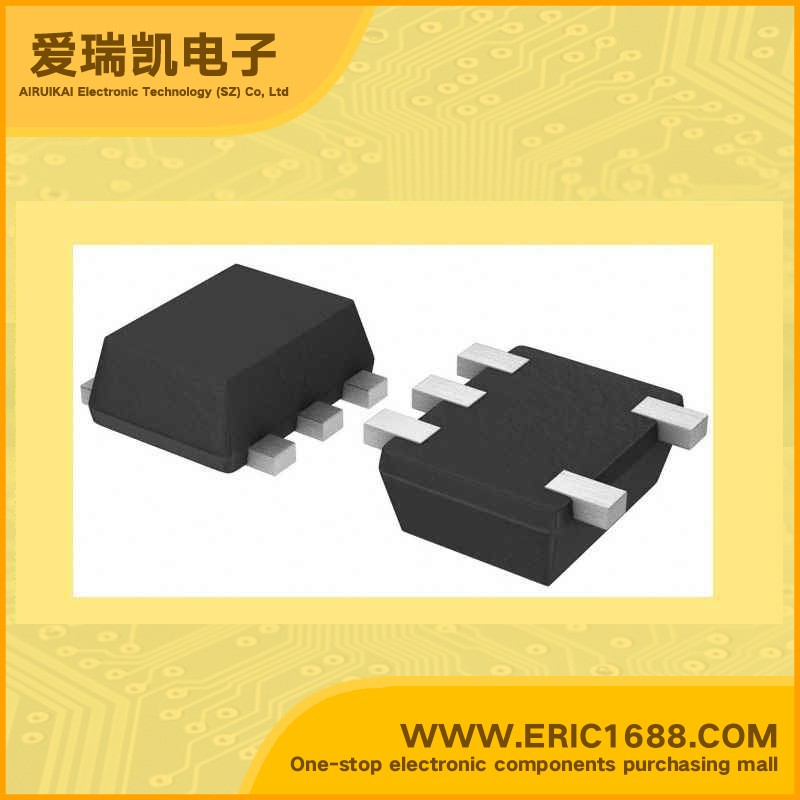

EMG5 NPN+NPN Complex Bipolar Digital Transistor 50V 100mA 0.15W R1=10KΩ R2=47KΩ SOT-553/EMT5 marking G5 switching inverting interface driver circuit
| Collector-Base Voltage(VCBO) Q1/Q2 | 50V/50V |
| Collector-Emitter Voltage(VCEO) Q1/Q2 | 50V/50V |
| Collector Current(IC) Q1/Q2 | 100mA/100MA |
| Q1 Input Resistance(R1) | 10KΩ/Ohm |
| Q1Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| Q1 Resistance Ratio | 0.21 |
| Q2 Input Resistance(R1) | 10KΩ/Ohm |
| Q2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| Q2 (R1/R2) Q2 Resistance Ratio | 0.21 |
| DC Current Gain(hFE) | |
| Transtion Frequency(fT) Q1/Q2 | 250MHz/250MHZ |
| Power Dissipation Q1/Q2 | 150mW/0.15W |
| Description & Applications | Features •Emitter common (dual digital transistors) •Two DTC114Y chips in a EMT or UMT or SMT package. |
| 描述与应用 | 特点 •发射极普通的（双数字晶体管） •两个DTC114Y的在EMT或UMT或SMT封装的芯片 |
