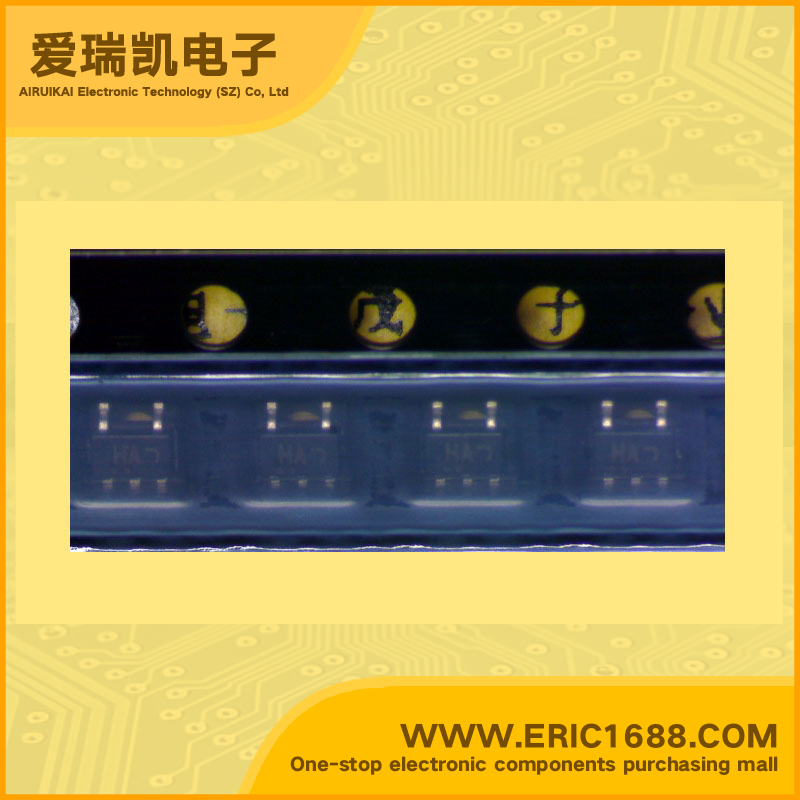

Integrated Circuit（IC） Inverting Schmitt trigger MC74HC1G14DFT2 SOT-353/SC-88A/SC70-5 marking HA
| 逻辑类型 Logic Type | 反相施密特触发器 Inverting Schmitt trigger |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 2V~6V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -2.6mA，2.6mA |
| 低逻辑电平 Logic Level - Low | 0.1V~0.26V |
| 高逻辑电平 Logic Level - High | 1.9V~5.68V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 12ns @ 4.5V，50pF |
| Description & Applications | Inverting Schmitt trigger；Features High Speed: tPD = 7 ns (Typ) @ VCC = 5 V Low Power Dissipation: ICC = 1 uA (Max) @ TA = 25°C High Noise Immunity Balanced Propagation Delays (tpLH = tpHL) Output Drive Capability: 5 LSTTL Symmetrical Output Impedance (IOH = IOL = 2 mA) ESD Performance: HBM > 2000V; MM > 200V |
| 描述与应用 | 反相施密特触发器；特性 高速：TPD =7纳秒（典型值）@ VCC = 5 V 低功耗：ICC=1微安（最大值）@ TA= 25°C 高抗噪声能力 平衡传输延迟（TPLH TPHL） 输出驱动能力：5输入通道 对称的输出阻抗（IOH= IOL= 2毫安） ESD性能：> 2000V HBM MM> 200V |
