SI5475DC MOSFET P-Channel -12V -7.6A 27mohm 1206-8 marking 8FTAC power MOSFET low on-resistance portable equipment load switch

Model：SI5475DC

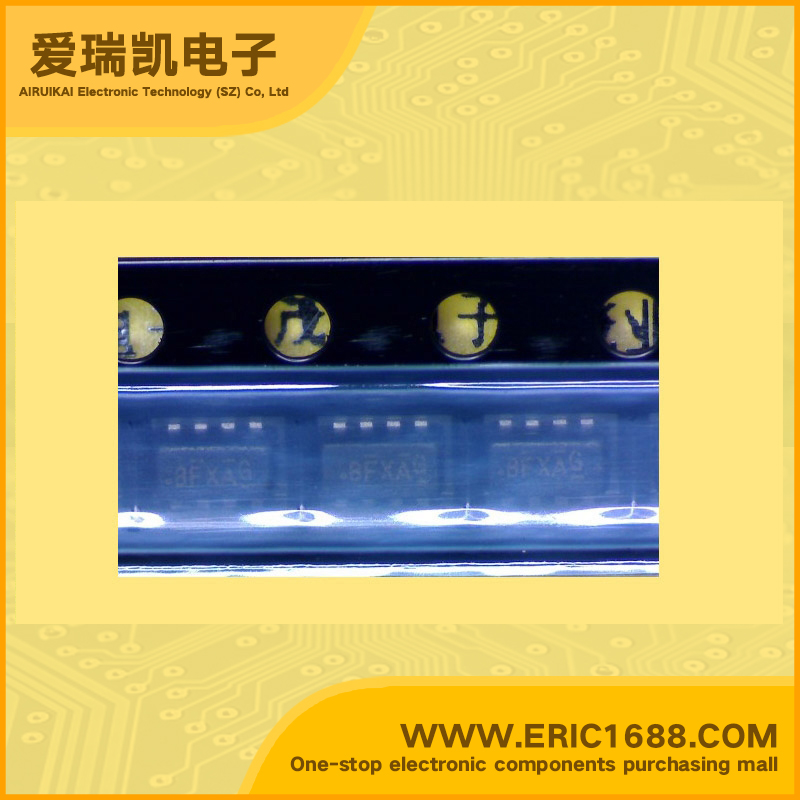

Mark / screen / code / typing：8FTAC
Manufacturer：
Date Code：05+
Package：1206-8
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	-12V
最大栅源极电压Vgs(±) Gate-Source Voltage	8V
最大漏极电流Id Drain Current	-7.6A
源漏极导通电阻Rds Drain-Source On-State Resistance	27mΩ@ VGS = -4.5V, ID = -5.5A
开启电压Vgs（th） Gate-Source Threshold Voltage	-0.45V
耗散功率Pd Power Dissipation	2.5W
Description & Applications	P-Channel 12-V (D-S) MOSFET TrenchFET 功率MOSFET
描述与应用	P沟道12-V（D-S）的MOSFET 特点 TrenchFET 功率MOSFET 低导通电阻应用 *用于便携式设备的电池和负载开关

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
TK11247BMCL LDO Voltage Regulator 4.7V 290mV/0.29V With Enable Pin SOT23L-6 marking 47P Short-Circuit Protection Over-Temperature Protection	TK11247BMCL Mark：47P Package：SOT23L-6	-	Batch number：05+	1000 Min Order:10
Thermistor NTHS-0805N17150K 150Ω 0805-150K	NTHS-0805N17150K NTHS0805N17N154K Mark： Package：0805-150K	-	Batch number：05+ 05+	3500 Min Order:10
power conductor DO1608C-152 1.5uH 1608-152	DO1608C-152 Mark： Package：1608-152	-	Batch number：05+09NOPB500	500 Min Order:10
XC62FP1602MR LDO Voltage Regulator 1.6V SOT-23 marking 1H Short-Circuit Protection Over-Temperature Protection	XC62FP1602MR Mark：1H Package：SOT-23	-	Batch number：04+	9000 Min Order:10
Ferrite Bead BLM21A401SPTM00-03 0805-400R	BLM21A401SPTM00-03(BLM21AJ401SN1D) Mark： Package：0805-400R	-	Batch number：05+ 05+	12000 Min Order:10
SSM3K7002BSU MOSFET N-Channel 60V 200mA/0.2A SOT-323/USM/SC-70 marking NM enhancement mode/logic level	SSM3K7002BSU Mark：NM Package：SOT-323/USM/SC-70	-	Batch number：11+ROHS 11+ROHS	95600 Min Order:10
F01J4L SBD Schottky Barrier Diodes 40V 100mA/0.1A 600mV/0.6V SOD323/SC-76/USC/0805 marking AC low forward voltage Low Forward Voltage Drop	F01J4L Mark：AC Package：SOD323/SC-76/USC/0805	-	Batch number：05+ 05+	0 Min Order:10
