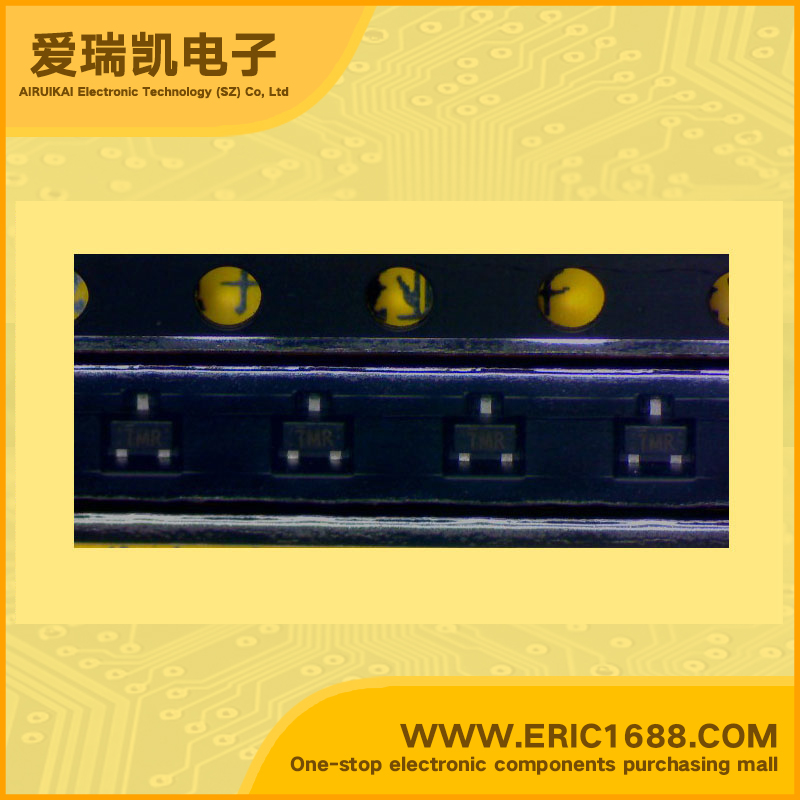

2SC6054GR8S0 NPN Transistors(BJT) 60V 100mA/0.1A 100MHz 100mV/0.1V SOT-523/SC-75 marking 7MR general amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 截止频率fT Transtion Frequency(fT) | 100MHz |
| 直流电流增益hFE DC Current Gain(hFE) | |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 100mV/0.1V |
| 耗散功率Pc Power Dissipation | 125mW/0.125W |
| Description & Applications | Silicon NPN epitaxial planar type For general amplification * Features * High forward current transfer ratio hFE * SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing. |
| 描述与应用 | NPN硅外延平面型 对于一般的放大 *特点 *高正向电流传输比HFE * SS-迷你型包装，使设备和自动减员 通过插入磁带包装。 |
