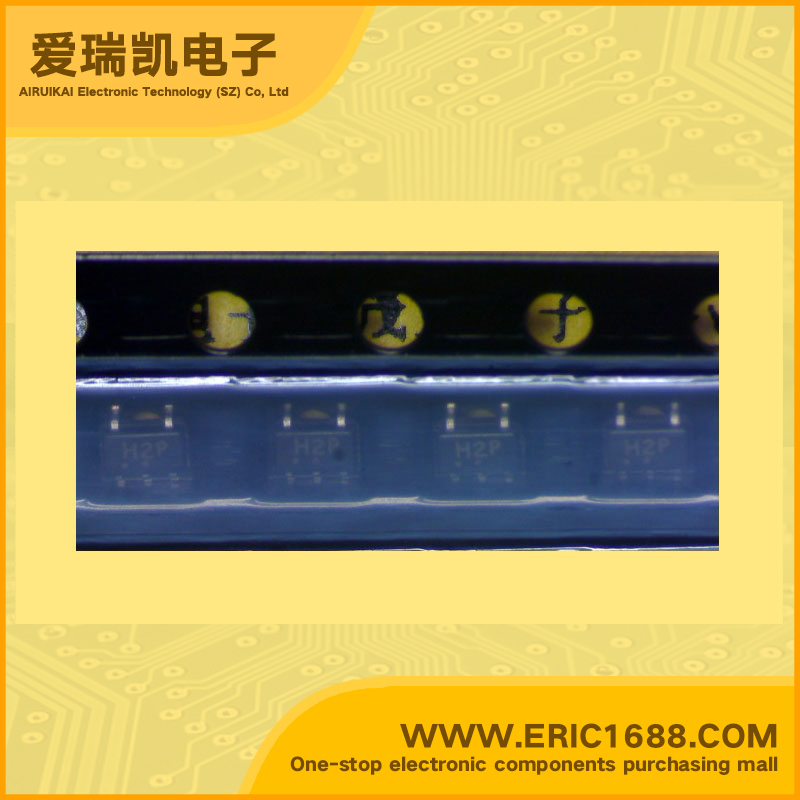

Integrated Circuit(IC) AND gate MC74HC1G08DFT2G SOT-153/SOT23-5/TSOP5/SC59?5 marking H2P

Hot selling goods

Product description
逻辑类型
Logic Type
与门 AND Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2V~6V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-2.6mA,2.6mA
低逻辑电平
Logic Level - Low
0.5V~1.8V
高逻辑电平
Logic Level - High
1.5V~4.2V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
8ns @ 4.5V,50pF
Description & ApplicationsSingle 2-input AND gate;Features High Speed: tPD = 7 ns (Typ) @ VCC = 5 V Low Power Dissipation: ICC = 1 uA (Max) at TA = 25°C High Noise Immunity Balanced Propagation Delays (tpLH = tpHL) Symmetrical Output Impedance (IOH = IOL = 2 mA) Chip Complexity: FET = 44 Pb−Free Packages are Available
描述与应用单路双输入与门;特性 高速:TPD =7纳秒(典型值)@ VCC = 5 V 低功耗:ICC=1 UA TA= 25°C(最大值) 高抗噪声能力 平衡传输延迟(TPLH TPHL) 对称的输出阻抗(IOH= IOL= 2毫安) 芯片的复杂性:FET=44 提供无铅封装
